ZigBeeForDomoticZ plugin Wiki
The Web interface - Settings page
Please refer to STEP 3 Plugin Configuration to get access to the Web interface administration.

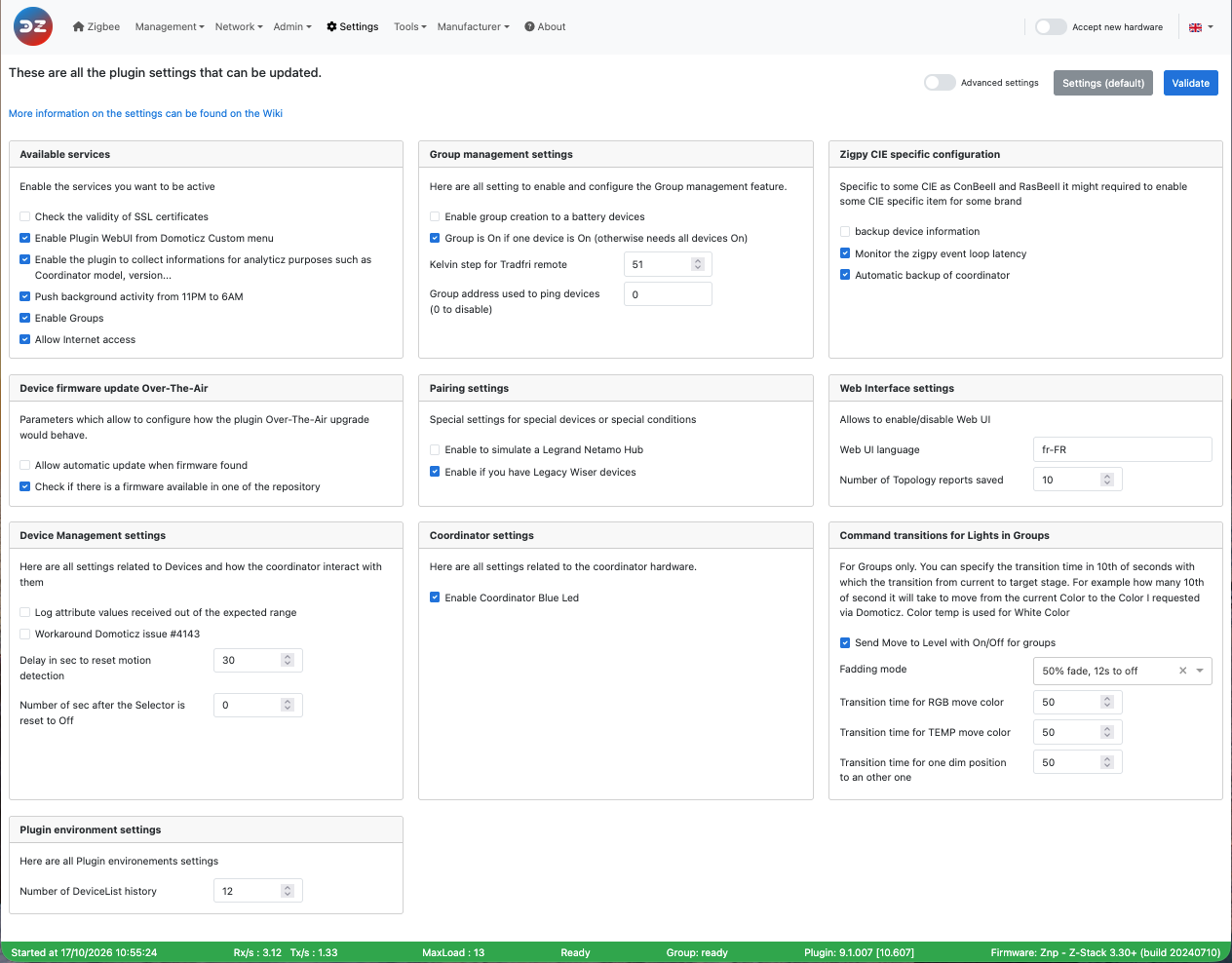

Here is the Settings page of the plugin Web interface :
This page may have have changed since this documentation was written.
Contents
This file is used to customized some behavior of the plugin at run time.
If you are updating values in PluginConf, we strongly recommend you to make a copy of it in order to avoid any lost when doing an update of the plugin.
The file is edited directly from the Web Admin page.
ATTENTION: Starting Version 4.5 the Configuration File Name is : PluginConf-xx.json and not ‘.txt’, and respect the json syntax.
The .txt’ one is not more used and can be removed
Services
Those parameters allow the activation or not of services at plugin start.
parameter
default
description
enablegroupmanagement
disable
manage the Groups
enableReadAttributes
disable
manage the polling service
enableWebServer
manage the Web Admin page
internetAccess
enable
Allow plugin to access Internet and check for latest version of Firmware and Plugin
allowOTA
disable
manage the Over-the-Air firmware upgrade
pingDevices
enable
ping every hour each main powered device (see pingDevicesFeq parameter)
DomoticZ Environment
Some of the DomoticZ parameters like on which port DomoticZ listen for getting access to the domoticZ API need to be provided.
parameter
default
description
port
8080
on which port DomoticZ listen to accept API requests
Group Management
parameter
default
description
Group is On if one device is On (otherwise needs all devices On)
enable
If you disable it, you will have the same behavior as on the Philips Hue hub. The group will be on only when ALL devices are On.
reComputeGroupState
enable
The group state will be regularly computed based on the state of the devices attached to that group.
forceGroupDeviceRefresh
enable
When doing a group action, like On/Off, a request will be made to each device part of the group for their current status
Command transitions for Lights
Those parameters enable smooth transitions from their current status to the desire one. This is applicable to all Bulbs and Groups.
parameter
default
description
Transition for Hue
instantaneous
Transition for Color Temp
instantaneous
Transition time in 10th of seconds when changing White color
Transition for RGB color
instantaneous
Transition time in 10th of seconds when changing the Color
Transition for Move to Level
instantaneous
Transition time in 10th of seconds when dimming
Web Interface
Those are parameters which will influence the behavior of the plugin internal web server. We do recommend to not touch it.
parameter
default
description
enableGzip
enable
gzip compression
enableDeflate
enable
deflate compression
enableChunk
enable
allow file to be chunk
enableKeepalive
enable
Keep a live session
enableCache
enable
caching
Polling
Those parameter manage the Polling activities (if enabled).
We do not recommend to enable it as it will increase the load on the Zigate and on the network. Please do note that reducing the timing will increase the frequency of polling information from the device and can generate bottleneck and even impact async commands.
parameter
default
description
pingDevicesFeq
3600
Ping device frequency every hour
pollingPhilips
disable
For Philips you need to enable polling in order to get their status. We recommend a value of 300 or above which correspond of number of seconds of polling
pollingGledopto
disabled
For Gledopto you need to enable polling in order to get their status. We recommend a value of 300 or above which correspond of number of seconds of polling
polling0000
8600
retrieving device basic info every day
polling0001
86400
retrieving device power info every day
pollingONOFF
900
retrieving device On/off status every 15’
pollingLvlControl
900
retrieving device Level Control every 15’
polling000C
3600
polling0100
3600
retrieving Shade Configuration
polling0102
900
retrieving Window Covering info
polling0201
900
Thermostat
polling0204
86400
Fan Control
polling0300
900
Color Control
polling0400
900
Illuminance measurement
polling0402
900
Temperature measurement
polling0403
900
Pressure measurement
polling0405
900
Relative Humidity
polling0406
900
Occupancy sensing
polling0500
86400
polling0502
86400
polling0702
900
Power measure
polling000f
900
pollingfc01
900
Device Management
parameter
default
description
forcePollingAfterAction
enable
will request a status update of the device state after an action
forcePassiveWidget
disable
will allow a DomoticZ acion on the widget despite the fact that the end device cannot receive the command. For exemple you have a Xiaomi battery device.
allowForceCreationDomoDevice
disable
Will create a Domotciz Widget even if there is already an existing one.
resetPluginDS
disable
will reset the plugin database data structure
resetConfigureReporting
disable
will reset the Configure Reporting info
resetReadAttributes
disable
will reset the polling info
resetMotiondelay
30
time before moving the Motion state to Off. You can use the one from the Domotciz Motion widget
allowGroupMembership
enable
will allow the plugin to automatically create group membership if known (Legrand)
doUnbindBind
disable
will force an unbind before binding a cluster
allowReBindingClusters
enable
will rebind clusters if the device is coming back
ZiGate Configuration
parameter
default
description
allowRemoveZigateDevice
disable
If enable when removing a device, a request will be done also to Zigate
blueLedOnOff
enable
manage the Zigate blue led.
resetPermit2Join
enable
will disable permit to join at plugin start
Ping
enable
will ping Zigate every 4’ to insure the connectivity
Certification
CE
CE or FCC certifications
channel
0
One of those 11, 15, 19, 20, 25 and 26 Zigate channel. 0 means Zigate will select the best one. Changing the channel will require a Soft Reset of Zigate and your already paired devices might need to be repaired
TXpower_set
0
Power attenuation. 0: 0dBM, 1: -9 dBM, 2: -20dBM, 3: -32dBM
extendedPANID
0
You can force the Extended PAN Id, this would required a full Erase PDM
Over The Air Upgrade
- Works currently for LEDVANCE and TRADFRI products
parameter
default
description
batteryOTA
disable
enable battery upgrade
waitingOTA
3600
delay in second before starting the Over-the-Air upgrade
Verbose
Menu has been moved to the Tool Debug sub menu
parameter
default
description
logDeviceUpdate
enable
display the Widget update message ‘UpdateDevice - (DIN-ZiGate - lumi.sensor_motion.aq2_Motion-00158d0003021601-01) 1:On’
debugMatchId
ffff
coma separated list of short address that you want to trace in the log
debugInput
disable
debugging all incoming messages
debugOutput
disable
debugging all outgoing messages
debugCluster
disable
debugging incoming clusters
debugHeartbeat
disable
debugging recurring activities
debugWidget
disable
debugging widget/DomoticZ management
debugPlugin
disable
debugging main plugin
debugDatabase
disable
debugging plugin database
debugCommand
disable
debugging Command/DomoticZ actions
debugPairing
disable
debugging pairing process
Legrand Specific
parameter
default
description
EnableLedIfOn
enable
blue led if On
EnableLedInDark
disable
blue led if Off
EnableDimmer
disable
enable dimmer
LegrandFilPilote
enable
enable fil pilote
Schneider Specific
parameter
default
description
enableSchneiderWiser
disable
Must be enable to pair Schneider Wiser devices
Others
parameter
default
description
alarmDuration
1
1s by default, this is the alarm duration
enableSchneiderWiser
disable
mainly allow to make the difference between Livolo and Schneider IEEE
numTopologyReports
number of Topology reports you want to keep
numEnergyReports
number of Energy reports you want to keep
PowerOn_OnOff
TradfriKelvinStep
51
when binding the Ikea Remote with plugin and Zigate you can control
vibrationAqarasensitivity
medium
low, medium, high for Aqara vibration sensitivity
The Web interface - Settings page
Please refer to STEP 3 Plugin Configuration to get access to the Web interface administration.
Here is the Settings page of the plugin Web interface :
This page may have have changed since this documentation was written.
Contents
This file is used to customized some behavior of the plugin at run time.
If you are updating values in PluginConf, we strongly recommend you to make a copy of it in order to avoid any lost when doing an update of the plugin.
The file is edited directly from the Web Admin page.
ATTENTION: Starting Version 4.5 the Configuration File Name is : PluginConf-xx.json and not ‘.txt’, and respect the json syntax.
The .txt’ one is not more used and can be removed
Services
Those parameters allow the activation or not of services at plugin start.
| parameter | default | description |
|---|---|---|
| enablegroupmanagement | disable | manage the Groups |
| enableReadAttributes | disable | manage the polling service |
| enableWebServer | manage the Web Admin page | |
| internetAccess | enable | Allow plugin to access Internet and check for latest version of Firmware and Plugin |
| allowOTA | disable | manage the Over-the-Air firmware upgrade |
| pingDevices | enable | ping every hour each main powered device (see pingDevicesFeq parameter) |
DomoticZ Environment
Some of the DomoticZ parameters like on which port DomoticZ listen for getting access to the domoticZ API need to be provided.
| parameter | default | description |
|---|---|---|
| port | 8080 | on which port DomoticZ listen to accept API requests |
Group Management
| parameter | default | description |
|---|---|---|
| Group is On if one device is On (otherwise needs all devices On) | enable | If you disable it, you will have the same behavior as on the Philips Hue hub. The group will be on only when ALL devices are On. |
| reComputeGroupState | enable | The group state will be regularly computed based on the state of the devices attached to that group. |
| forceGroupDeviceRefresh | enable | When doing a group action, like On/Off, a request will be made to each device part of the group for their current status |
Command transitions for Lights
Those parameters enable smooth transitions from their current status to the desire one. This is applicable to all Bulbs and Groups.
| parameter | default | description |
|---|---|---|
| Transition for Hue | instantaneous | |
| Transition for Color Temp | instantaneous | Transition time in 10th of seconds when changing White color |
| Transition for RGB color | instantaneous | Transition time in 10th of seconds when changing the Color |
| Transition for Move to Level | instantaneous | Transition time in 10th of seconds when dimming |
Web Interface
Those are parameters which will influence the behavior of the plugin internal web server. We do recommend to not touch it.
| parameter | default | description |
|---|---|---|
| enableGzip | enable | gzip compression |
| enableDeflate | enable | deflate compression |
| enableChunk | enable | allow file to be chunk |
| enableKeepalive | enable | Keep a live session |
| enableCache | enable | caching |
Polling
Those parameter manage the Polling activities (if enabled). We do not recommend to enable it as it will increase the load on the Zigate and on the network. Please do note that reducing the timing will increase the frequency of polling information from the device and can generate bottleneck and even impact async commands.
| parameter | default | description |
|---|---|---|
| pingDevicesFeq | 3600 | Ping device frequency every hour |
| pollingPhilips | disable | For Philips you need to enable polling in order to get their status. We recommend a value of 300 or above which correspond of number of seconds of polling |
| pollingGledopto | disabled | For Gledopto you need to enable polling in order to get their status. We recommend a value of 300 or above which correspond of number of seconds of polling |
| polling0000 | 8600 | retrieving device basic info every day |
| polling0001 | 86400 | retrieving device power info every day |
| pollingONOFF | 900 | retrieving device On/off status every 15’ |
| pollingLvlControl | 900 | retrieving device Level Control every 15’ |
| polling000C | 3600 | |
| polling0100 | 3600 | retrieving Shade Configuration |
| polling0102 | 900 | retrieving Window Covering info |
| polling0201 | 900 | Thermostat |
| polling0204 | 86400 | Fan Control |
| polling0300 | 900 | Color Control |
| polling0400 | 900 | Illuminance measurement |
| polling0402 | 900 | Temperature measurement |
| polling0403 | 900 | Pressure measurement |
| polling0405 | 900 | Relative Humidity |
| polling0406 | 900 | Occupancy sensing |
| polling0500 | 86400 | |
| polling0502 | 86400 | |
| polling0702 | 900 | Power measure |
| polling000f | 900 | |
| pollingfc01 | 900 |
Device Management
| parameter | default | description |
|---|---|---|
| forcePollingAfterAction | enable | will request a status update of the device state after an action |
| forcePassiveWidget | disable | will allow a DomoticZ acion on the widget despite the fact that the end device cannot receive the command. For exemple you have a Xiaomi battery device. |
| allowForceCreationDomoDevice | disable | Will create a Domotciz Widget even if there is already an existing one. |
| resetPluginDS | disable | will reset the plugin database data structure |
| resetConfigureReporting | disable | will reset the Configure Reporting info |
| resetReadAttributes | disable | will reset the polling info |
| resetMotiondelay | 30 | time before moving the Motion state to Off. You can use the one from the Domotciz Motion widget |
| allowGroupMembership | enable | will allow the plugin to automatically create group membership if known (Legrand) |
| doUnbindBind | disable | will force an unbind before binding a cluster |
| allowReBindingClusters | enable | will rebind clusters if the device is coming back |
ZiGate Configuration
| parameter | default | description |
|---|---|---|
| allowRemoveZigateDevice | disable | If enable when removing a device, a request will be done also to Zigate |
| blueLedOnOff | enable | manage the Zigate blue led. |
| resetPermit2Join | enable | will disable permit to join at plugin start |
| Ping | enable | will ping Zigate every 4’ to insure the connectivity |
| Certification | CE | CE or FCC certifications |
| channel | 0 | One of those 11, 15, 19, 20, 25 and 26 Zigate channel. 0 means Zigate will select the best one. Changing the channel will require a Soft Reset of Zigate and your already paired devices might need to be repaired |
| TXpower_set | 0 | Power attenuation. 0: 0dBM, 1: -9 dBM, 2: -20dBM, 3: -32dBM |
| extendedPANID | 0 | You can force the Extended PAN Id, this would required a full Erase PDM |
Over The Air Upgrade
- Works currently for LEDVANCE and TRADFRI products
| parameter | default | description |
|---|---|---|
| batteryOTA | disable | enable battery upgrade |
| waitingOTA | 3600 | delay in second before starting the Over-the-Air upgrade |
Verbose
Menu has been moved to the Tool Debug sub menu
| parameter | default | description |
|---|---|---|
| logDeviceUpdate | enable | display the Widget update message ‘UpdateDevice - (DIN-ZiGate - lumi.sensor_motion.aq2_Motion-00158d0003021601-01) 1:On’ |
| debugMatchId | ffff | coma separated list of short address that you want to trace in the log |
| debugInput | disable | debugging all incoming messages |
| debugOutput | disable | debugging all outgoing messages |
| debugCluster | disable | debugging incoming clusters |
| debugHeartbeat | disable | debugging recurring activities |
| debugWidget | disable | debugging widget/DomoticZ management |
| debugPlugin | disable | debugging main plugin |
| debugDatabase | disable | debugging plugin database |
| debugCommand | disable | debugging Command/DomoticZ actions |
| debugPairing | disable | debugging pairing process |
Legrand Specific
| parameter | default | description |
|---|---|---|
| EnableLedIfOn | enable | blue led if On |
| EnableLedInDark | disable | blue led if Off |
| EnableDimmer | disable | enable dimmer |
| LegrandFilPilote | enable | enable fil pilote |
Schneider Specific
| parameter | default | description |
|---|---|---|
| enableSchneiderWiser | disable | Must be enable to pair Schneider Wiser devices |
Others
| parameter | default | description |
|---|---|---|
| alarmDuration | 1 | 1s by default, this is the alarm duration |
| enableSchneiderWiser | disable | mainly allow to make the difference between Livolo and Schneider IEEE |
| numTopologyReports | number of Topology reports you want to keep | |
| numEnergyReports | number of Energy reports you want to keep | |
| PowerOn_OnOff | ||
| TradfriKelvinStep | 51 | when binding the Ikea Remote with plugin and Zigate you can control |
| vibrationAqarasensitivity | medium | low, medium, high for Aqara vibration sensitivity |
